We have 2 of these in stock. We charge a $5.00 packaging fee for each head plus actual shipping costs.
Planer Cutterhead Molding Head Type 504

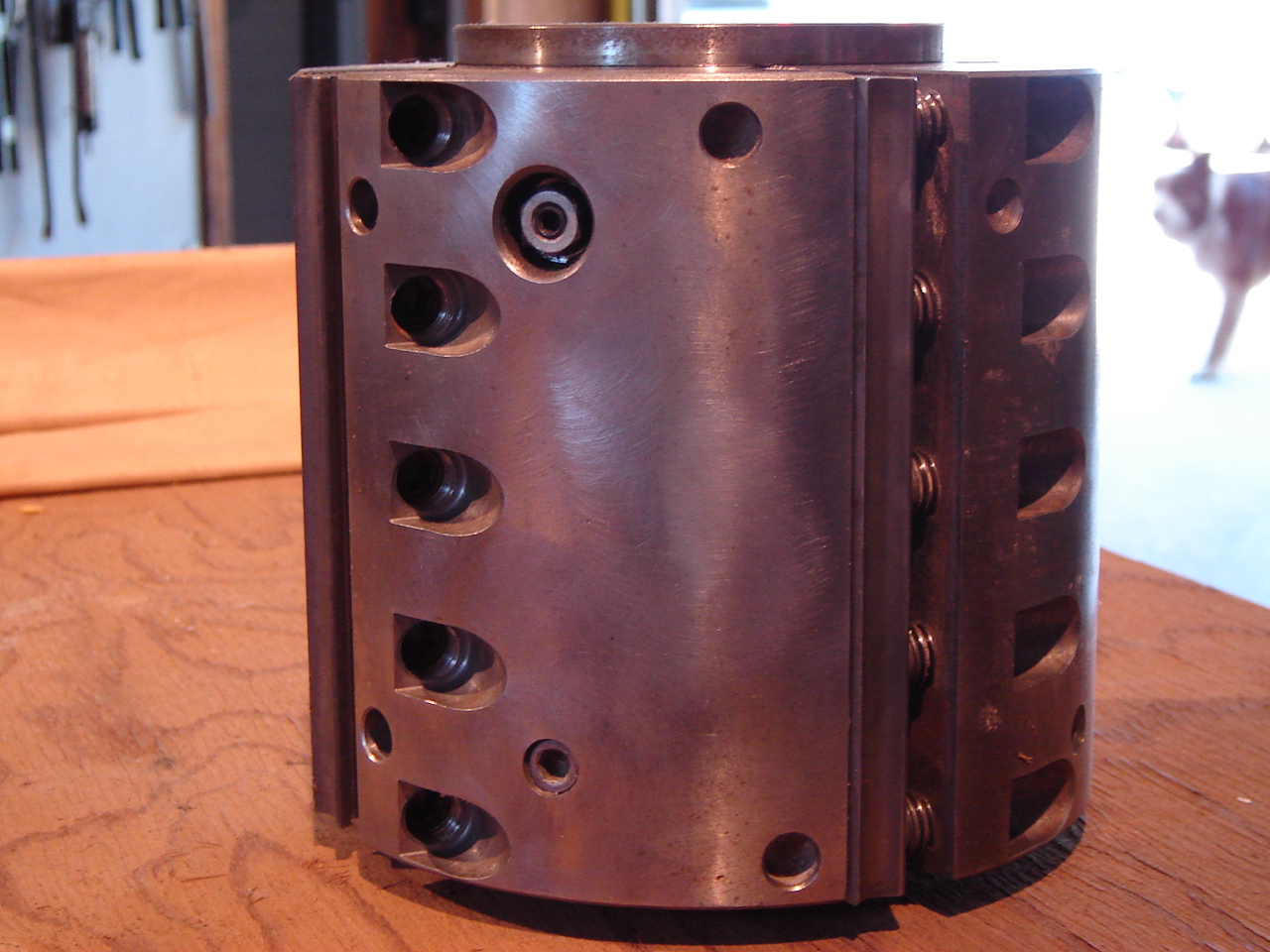

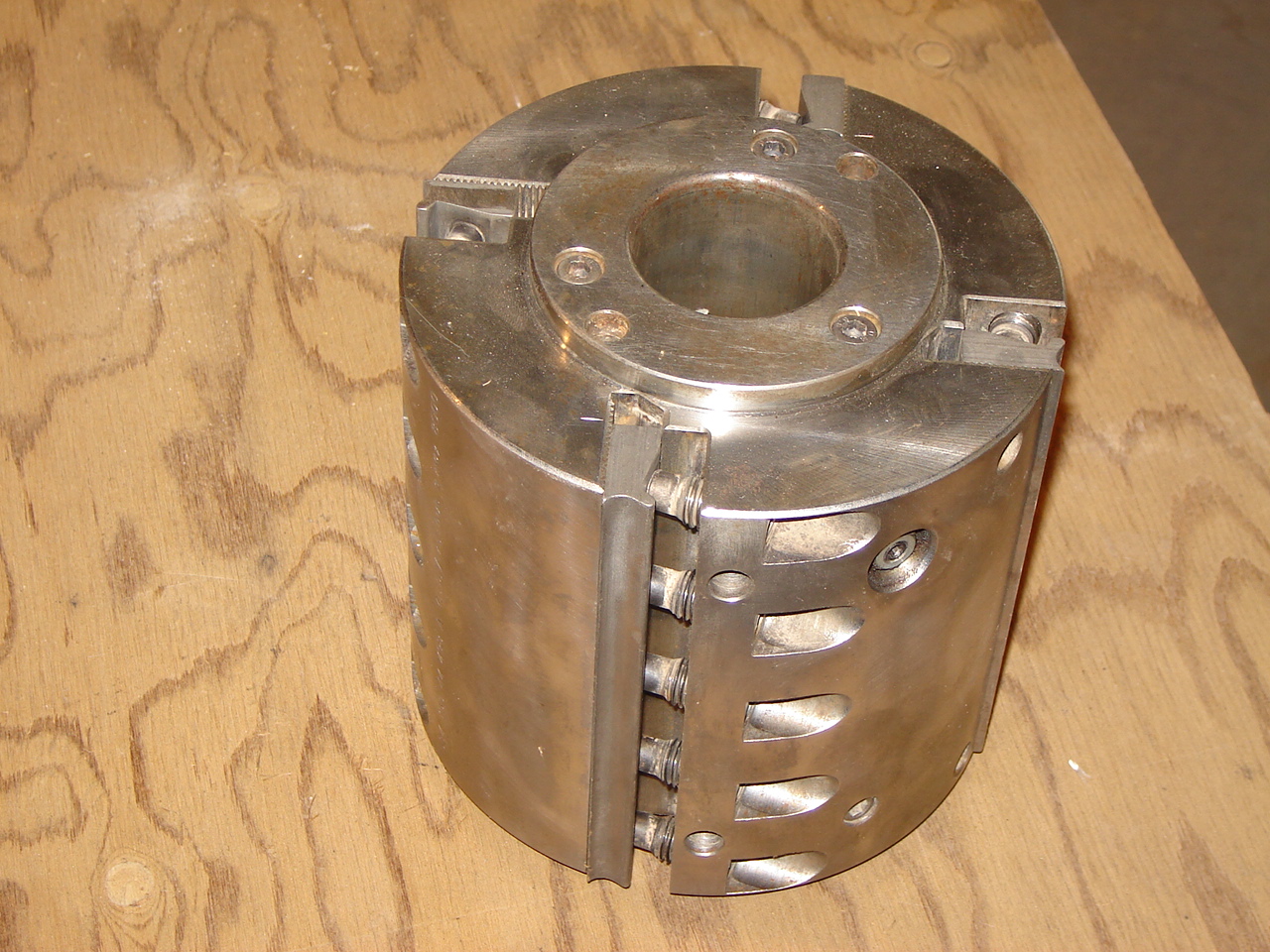

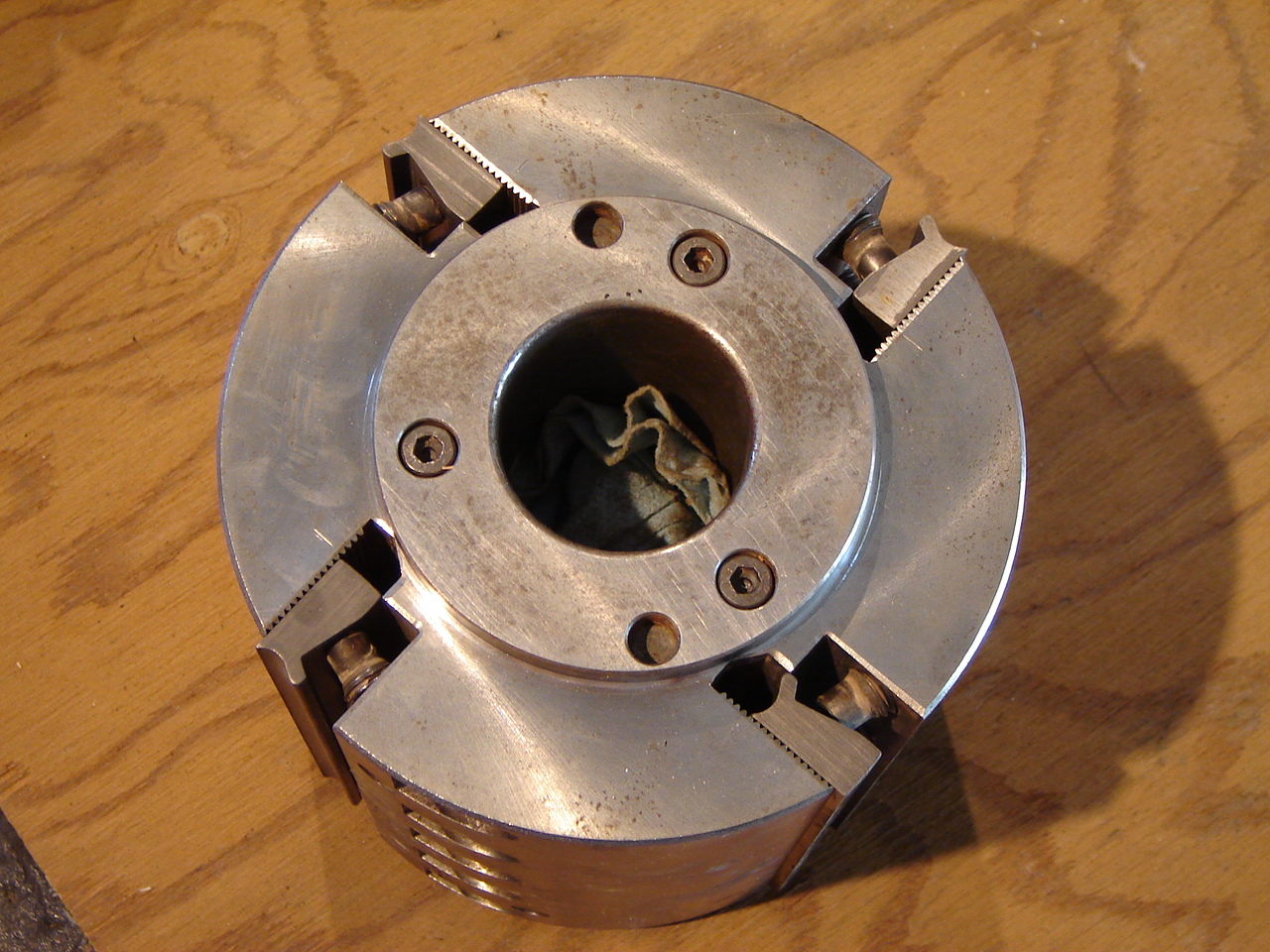

 Weinig 504-150-44 Hydro Cutterhead Moulding Head Type 504. NOS (New Old Stock - Never Used) 150mm (5-29/32"w) 6" dia, 4 knives, 12deg angle, 1-13/16" bore. They sell for $705.00 new ea.  They weigh about 35 pounds each..

Current Price: $599.00 ea

We also have (4) 3" heads in stock.

 What a Deal!

Hurry!  Only

2 Left in Stock!







ABM 750 Bag Palletizer


This machine is currently setup for operation and was used for 3 and 5 tie pallet layers with 25 and 50 pound paper bags.  It was used with sunflower seeds, corn and other bird seed mixes.  The machine can currently be shown only in limited operation (not full production rate) because the previous owner went out of business due to local competition and mismanagement.  The in feed conveyor up to the palletizer input level is not included in this price but may possibly be purchased separately.
When new, this machine sold for $125,000
FOB: Bemidji, Minnesota
Current price: $14,000
The buyer is responsible for all additional disassembly, loading, shipping, reassembly and recommissioning costs.  We may assist or arrange some or all of the above tasks for additional fees.
Specifications:

Electrical: 230VAC +-10% 54A 3PH 5wire              Air Supply: 12SCFM @ 90PSI                Dimensions: 54' Long x 14' Wide x 16' High Weight: Approximately 13 tons               Throughput Maximum: 1200 bags per hour

History:

This machine was purchased from a seed company in Texas 16 years ago by a neighboring company to palletize bird seed. Our company was employed to help bring it to northern Minnesota and get it running with the exception of the structural assembly.  I personally was responsible for everything electrical, electronic and pneumatic from programming to air solenoid valve testing.  We have been involved periodically to repair and tune up many functions of this equipment over the years as owners have changed several times.  Now we have been asked to help sell the machine.

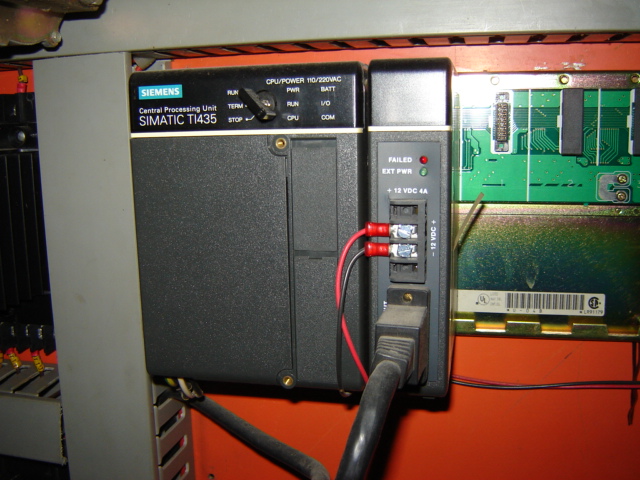

CPU: Replaced when moved to Minnesota; Siemens- Simatic TI435: programmable via 25 pin  RS232 port using TISoft software.

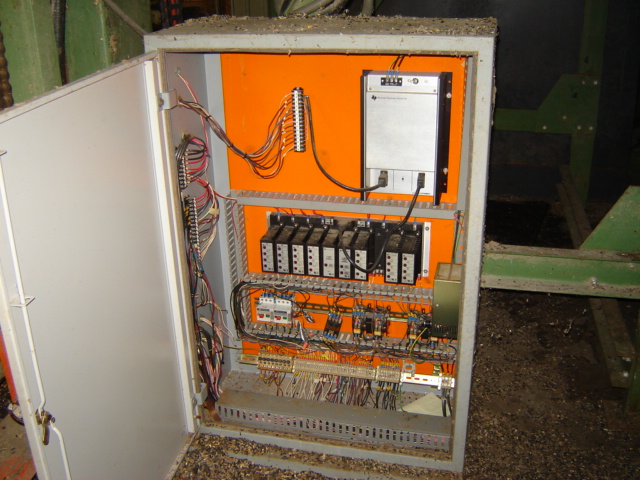

Secondary Control Panel (slip sheet feeder & I/O conveyors): CPU expansion module, additional I/O modules and motor starters.

 More information will be coming soon....

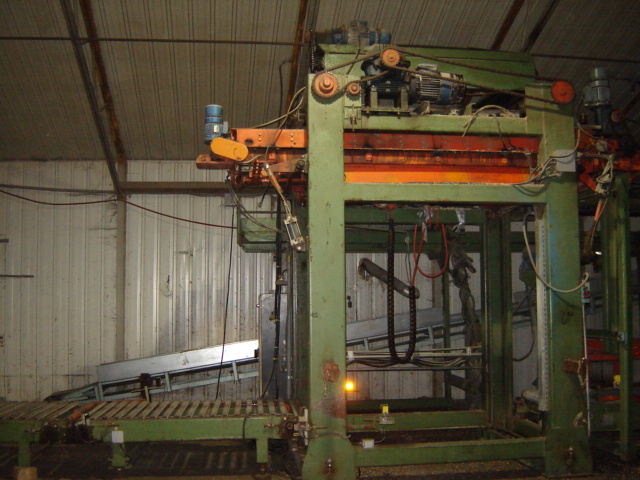

Layer Forming & Out feed section: Top Level: Staging and Layer Forming.  Bottom Level: Pallet feed from right, Loaded pallet coming down and out feed conveyor to left.

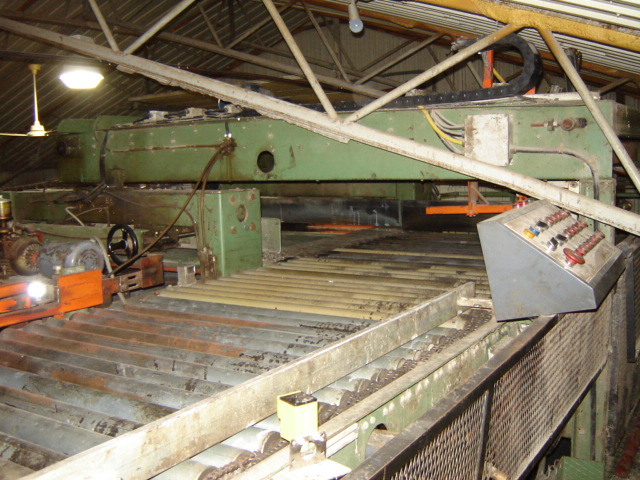

Top Level - Left: Staging Conveyor.  Right: Layer forming conveyor (white rollers)  Where the 3 or 5 tie layers are staged before sliding onto the other layers.  The manual operator panel is shown on the right.

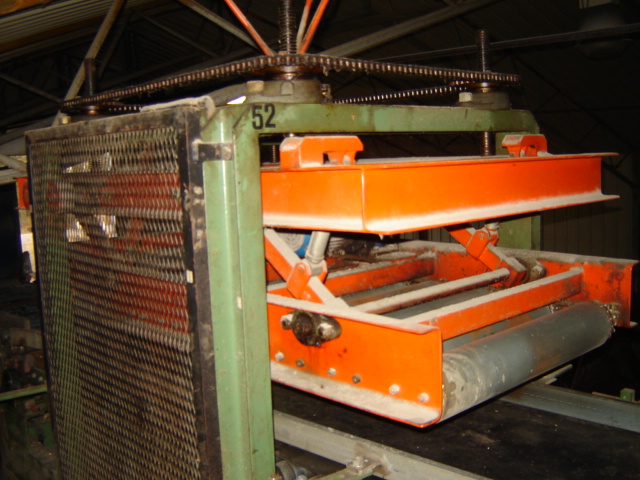

Top Level - Bag flattener

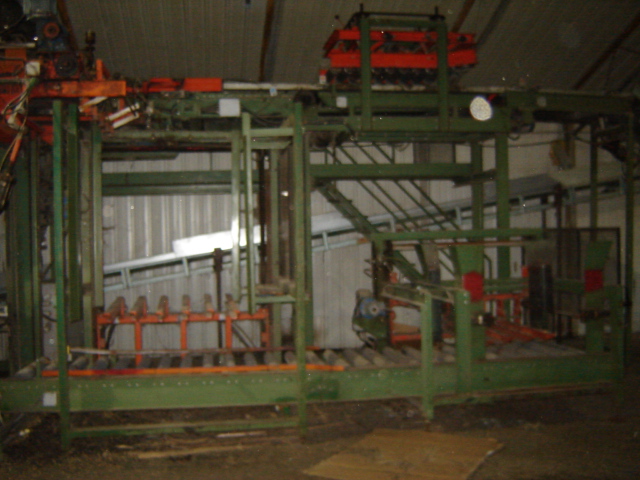

In feed Section: Top Level: (Right to left) In feed conveyor, Bag Flattener and Staging Conveyor.  Bottom Level: Pallet Stacker/Loader and Slip Sheet Feeder.

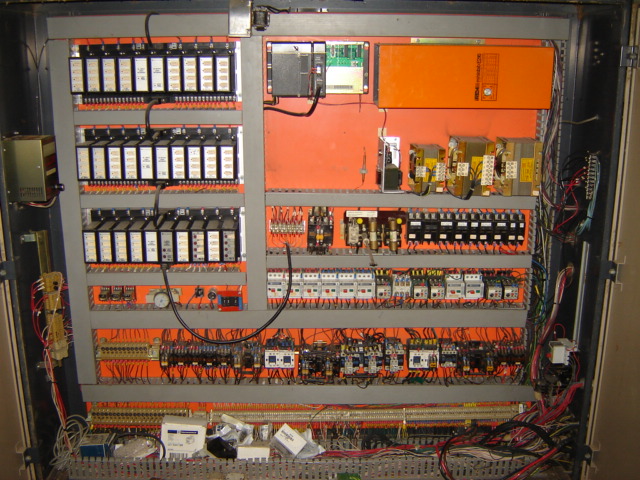

Main Control Panel: Main CPU, Low voltage Power Supplies, I/O Modules, I/O Fuses, Motor Starters & Thermal Overloads, Condensation Heater, Cooling Fan and Main disconnect.

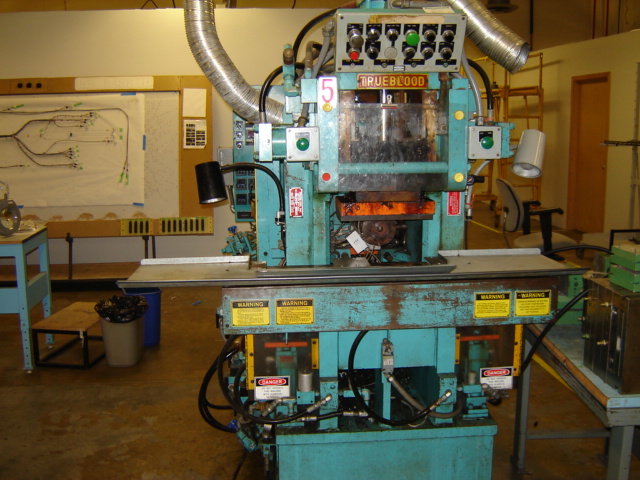

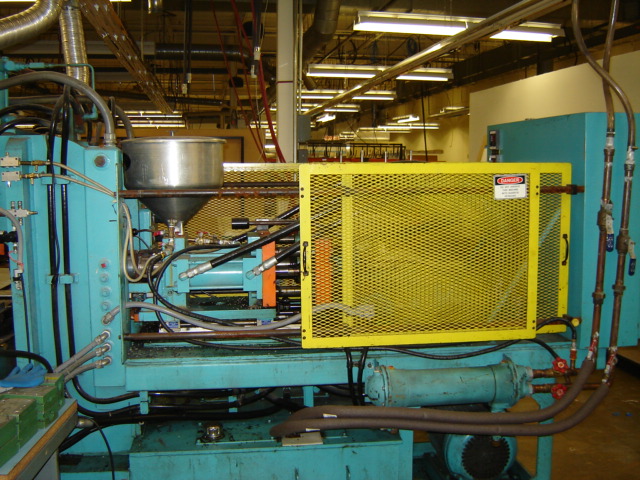

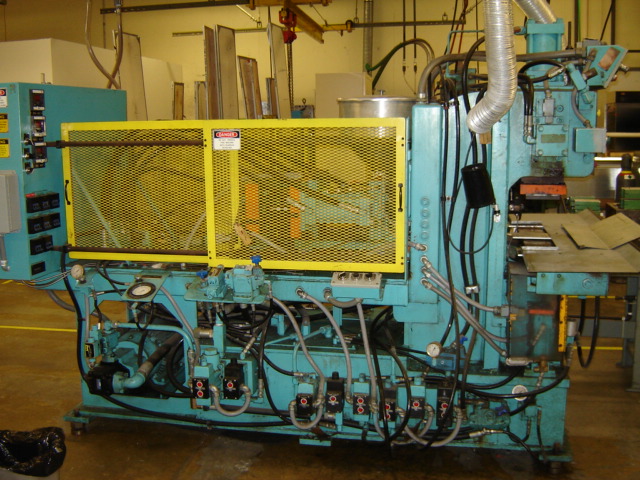

Trueblood A-75-8 Injection Molding Machine

This plastic injection molding machine, as shown by the model number, is a 75 ton with an 8oz shot size.

Specifications:

  1. Type is a horizontal inject with a vertical clamp.
  2. Shuttle distance is 14" from left to right.
  3. Clamp height is 8.5" from the clamp to the shuttle when closed.
  4. Max mold size 14"W x 12"D
  5. 4" of clamp travel.
  6. Currently set up to run on 240VAC, 3PH and is internally fused at 70 amps.
  7. Hydraulic system holds and contains 60 gallons of hydraulic oil.
  8. The 20 HP hydraulic pump has recently had a new $1800 head installed.
  9. Controller is an Allen Bradley SLC 100.
  10. The model number is A-75-8 and Serial 0487821
  11. Measures 60"W x 114"D x 80"H
  12. A weight guestimate is over 9000 pounds.

It was taken out of working service on October 8, 2006 and was maintained very well.

 The machine will ship FOB Bemidji, MN 56601 on your truck or we can arrange one for you. There will be an approximate $300.00 US loading fee for this machine.  It is currently in a factory were it can be loaded by our contractor. The buyer will pay all packaging, loading and shipping costs which we can arrange.
We will be happy to answer emailed questions about this machine.





A Great Price at $6,000.00!

Manual first half (pdf)

Manual second half (pdf)





Misc Equipment Inv
ProductID ProductName ProductDescription Manufacturer Mfg Part # Sell Price On Hand U/M CategoryName
2004 Bag Palletizing Machine Currently set up for 3 and 5 tie with 25 and 50 pound paper bags ABM
$14,000.00 1 EA Misc Equipment
934 Bar Code Boards 0360-159 Bar Code/2215974 Rev 0
2215973 E
38 EA Misc Equipment
1307 Clear Plastic case/cover 61295 Tempo Enterprises 4368122-000+TE $0.05 1866 EA Misc Equipment
1986 Hydro Cutterhead Moulding Head Type 504 NOS 150mm (5-29/32"w) 6" dia, 4 knives, 12deg angle, 1-13/16" bore, $705.00 new ea. Weinig 504-150-44 $375.00 2 EA Misc Equipment
1987 Hydro Cutterhead Moulding Head Type 504 NOS 60mm (2-23/64"w) 6"dia, 4 knives, 12deg angle, 1-13/16" bore, $500.00 new ea. Weinig 504-150-21 $275.00 4 EA Misc Equipment
2003 Molding Machine Plastic molding machine, 75 ton, 8oz shot size, horiz inject, vertical clamp,14" shuttle distance, 8.5" clamp height closed, 4" clamp travel, 220VAC, 3PH, Fused 70A, 60 gal hyd fluid, AB SLC 100 Control, new $1800 hyd pump head, 20HP pump, Serial 0487821 Trueblood A-75-8 $6,000.00 1 EA Misc Equipment
1992 NEW Pair Fork lift truck steer tires 12-16.5LT Heavy duty R-4 12 ply rating, tubeless, fits Cat RC60 Forklift and others, 100% rubber NEW Galaxy 12-16.5LT $225.00 1 EA Misc Equipment
1140 Nidec Beta V Fan 24V DC .45 AMP 1400-019 Mod. B33534-16A p/n 930041 Nidec TA45ODC $15.00 14 EA Misc Equipment
1991 Pair Fork lift truck drive tires w/rims 16.9-24 Tractor lug, Heavy duty R-4 10 ply rating, fits Allis Chalmers 706C Forklift and others, 60% rubber. 8 hole rim, 8" Bolt circle, 3/4" bolt hole, 5-1/2" center hole, Armstrong Industrial 16.9-24 $425.00 1 EA Misc Equipment
1311 Plastic Float 4" Diameter 5" Long 1/4-20 rod size Teel
$1.25 7 EA Misc Equipment
1284 Players Choice Vette! PC CD Rom The Street Race Simulation through San Francisco Spectrum Holobyte
$5.00 1 EA Misc Equipment

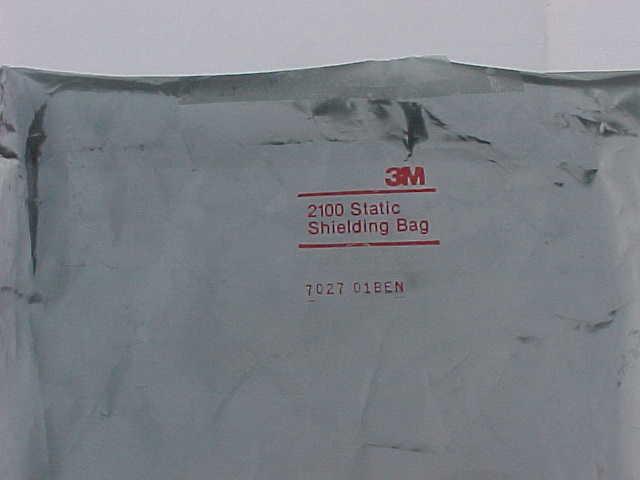

752 Static shielding Bag (Used) 8"x7.75" 3M 2100 $0.04 5000 EA Misc Equipment
1988 Wood shaper molding head blade cutter stock NOS 25" long, 5/16" thick, 50mm 2" wide, M3 Steel, lot of 1, $131.00 new ea Weinig 70006 $80.00 1 EA Misc Equipment
1989 Wood shaper molding head blade cutter stock NOS 25" long, 5/16" thick, 60mm 2-3/8" wide, M3 steel, lot of 2, $150.00 new ea Weinig 70008 $240.00 1 EA Misc Equipment
1990 Wood shaper molding head blade cutter stock Kni-Tek NOS 31" long, .125" thick, 1.25" wide, lot of 5, $85.00 new ea, #4 planer knives Ohio Knife Buss 55 $260.00 1 EA Misc Equipment



752 Static Shield Bag
